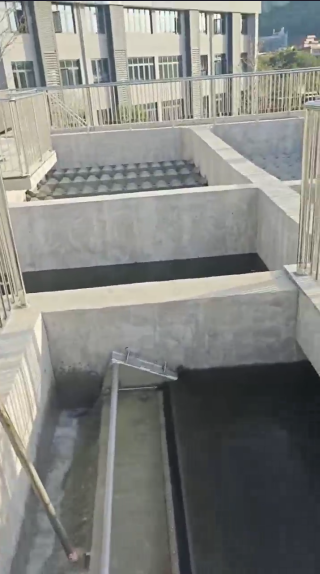

Wastewater Treatment

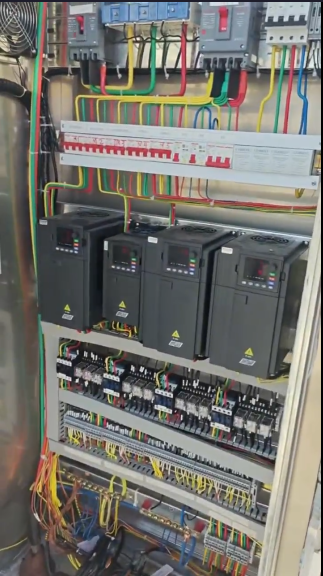

The application of CHRH Inverter in wastewater treatment plants, by precisely adjusting motor speed, achieves energy saving and consumption reduction, extends equipment life, and improves process control levels.
- Main Application Scenarios of CHRH Inverter in Wastewater Treatment Plants
· Clear Water Pumps
· Application Function: Adjust the lifting flow rate according to the inflow volume to avoid drastic fluctuations in liquid level.
· Key Value: Energy saving and consumption reduction (20%-40%), soft start and stop (eliminate water hammer), equipment protection.
· Sewage Pumps
· Application Function: Precisely control the sludge return flow to ensure the efficiency of biological treatment.
· Key Value: Stabilize core process parameters, adapt to load changes.
· Dosage Pumps
· Application Function: Precisely adjust the dosage amount according to water quality parameters (such as flow rate, pH value).
· Key Value: Improve dosing accuracy, save chemicals, stabilize effluent water quality.
· Sludge Treatment Equipment (e.g., feed pumps for dewatering machines)
· Application Function: Adjust the processing speed of sludge treatment equipment to match the upstream sludge inflow.
· Key Value: Optimize dewatering efficiency, energy saving and consumption reduction, stable operation.
- Selecting the CHRH B series Inverter for the water treatment industry can maximize the aforementioned benefits. These B Series Inverter offer the following advantages:
·Dedicated Control Software: Equipped with built-in PID (Proportional-Integral-Derivative) control algorithms specifically for pumps and fans, enabling control functions such as constant pressure and constant flow.
· Intelligent Diagnosis: Can monitor equipment health status and provide early fault warnings.
·Communication Integration: Integrates with monitoring data acquisition systems and other control systems via the Modbus protocol, facilitating remote real-time monitoring and centralized management.
These advantages ultimately bring higher treatment efficiency to wastewater treatment plants that adopt the CHRH Inverter solution.
III. If you want to apply a frequency converter in a specific wastewater treatment project, you usually need to consider the following steps:
1. Clarify the application goals and scenarios
· Energy-saving renovation: For existing plants, perform frequency conversion renovation on high-energy-consuming equipment such as influent pumps and blowers. The payback period is typically around 10 months.
· Process optimization: To improve treatment stability, precise control can be implemented for return pumps and dosing pumps.
· New project design: During the new plant design phase, dedicated inverters can be directly selected to build a more efficient and energy-saving overall solution.
2. Key equipment selection considerations
· Equipment matching: Confirm that the voltage and power of inverter is matched with the motor. For large-power pumps (such as hundreds of kilowatts or more), high-voltage inverters may need to be considered.
· Functional requirements: Evaluate whether functions such as built-in PID, specific communication interfaces (e.g., Modbus, Profinet), and specific protection ratings (e.g., IP55/IP66) are needed.
3. System Integration and Control
· Signal Feedback: Inverters usually need to be used in conjunction with instruments such as level meters, flow meters, pressure sensors, and dissolved oxygen meters to form a closed-loop control system.
· Control Level: The inverter can serve as an executive unit, receiving instructions from on-site PLCs (Programmable Logic Controllers) or the plant's centralized control system.
· Debugging and Optimization: After installation, precise debugging of the inverter's PID parameters, acceleration/deceleration time, upper and lower frequency limits, etc., is required based on actual operating conditions to achieve optimal control performance.
In general, inverters have become key equipment for wastewater treatment plants to achieve refined, intelligent operation and energy conservation and emission reduction by enabling devices to 'work as needed'. As a leading Chinese manufacturer and supplier of inverter, CHRH possesses rich industry experience, cutting-edge technical capabilities, and a firm commitment to quality. Whether customers require customized solutions or standard model products, CHRH can provide excellent performance and high-quality service. Choosing CHRH means partnering with a reliable inverter supplier. Selecting CHRH as your inverter partner offers wastewater treatment plants more reliable, high-performance solutions.
